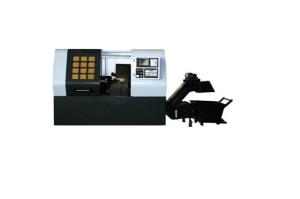

Casting Iron Body CNC Small Aluminium Cnc Machine Linear Guide Horizontal For Small Parts

Brand Name : ZYD
Model Number : ZYD-XL20
Certification : CE
Place of Origin : CHINA
Price : USD10000
Payment Terms : T/T
Supply Ability : 100PCS/MONTH
Delivery Time : 30DAYS
Packaging Details : WOODEN PALLET
X-Max stroke : 220mm
Z-Max stroke : 400mm
Taper of spindle bore spindle : 44°
Slide Width : 40mm
Speed of mainshaft : 100-3000r/min
Repositioning Accuracy : 0.01mm
Diamension : 1400x1100x1450mm
Motor Power : 3kw
Contact Now

ZYD-XL20 Casting Iron Body High Rigidity And High Speed Feed System CNC Lathe / cutting cnc machine


Machine suitable for processing various kinds of hardware parts, such as turning products of electronic parts, motor parts, auto parts, gardening parts, plumbing and so on. With high effectiveness and high production, it creates a best processing technology solution, bringing high profit and low costs.

The mechanical structure of YDM lathe is made of high quality cast iron and after perfect stress relieving, ensuring the long stability of the machine. All machine parts undergo precise machining and testing, and precise assembly. With rigorous inspection process and factory testing, we always take care of each detail, thoroughly control the quality of each machine, maintaining our long term rooted top quality standard.


◆ Maximum swing: Φ200mm

◆ Maximum chip length: 190mm

◆ Bar diameter: Φ50mm

◆ X spindle travel: 200mm

◆ Z spindle travel: 232mm

◆ X/Z spindle positioning accuracy: 0.008mm

◆ X/Z spindle repeat positioning accuracy: 0.005mm

◆ X/Z axis fast displacement speed: 20m/min

◆ Spindle center height: 936mm

◆ The spindle max. rotating speed: 6000rpm

◆ The spindle motor power: 5.5KW

◆ The spindle rod actuator: hydraulic

◆ Tool arbor quantity: 8Pcs

◆ Adjacent knife tool change time: 0.3S

◆ X axis power: 2.2KW

◆ Z axis power:2.2KW

◆ Machine weight: 1262kg

◆ Oil tank volume: 50L

◆ Spindle head model: A2-4

◆ Machine size: 2047×1340×1656


1. Suitable for small parts, large quantities of both inside and outside round processing.

2. Adopt CNC program control, easy to operate.

3. Easy operation with hydraulic chuck and it can better and more quickly to clamp work piece.

4. With scrap iron and dust collecting vehicle conveyer.

5. Line rail screw driver, with high speed, saft and stable.


Structures design with high rigidity and high precision

1. The main components are made of high quality FC-30 cast iron, with stable structure, ensuring the long top quality.

2. The materials undergo reliability Finite Element Analysis, making the more reasonable structure and comply with dynamics principle.

Feeding system with high rigidity and high speed

1. Dual spindle motor directly transfers by high precision ball screw, increasing the rigidity and degree of precision.

2. The X axis motor adds the function of motor breaking system, keeping the balance and sensitivity even at high speed displacement, ensuring the processing accuracy


This machine especially suitable for the short axis and disc parts processing. Is the automobile and motorcycle accessories, watches, valves, hardware processing enterprises first choice

After-sale service

We providing technical training,quality guarantee 1year.
